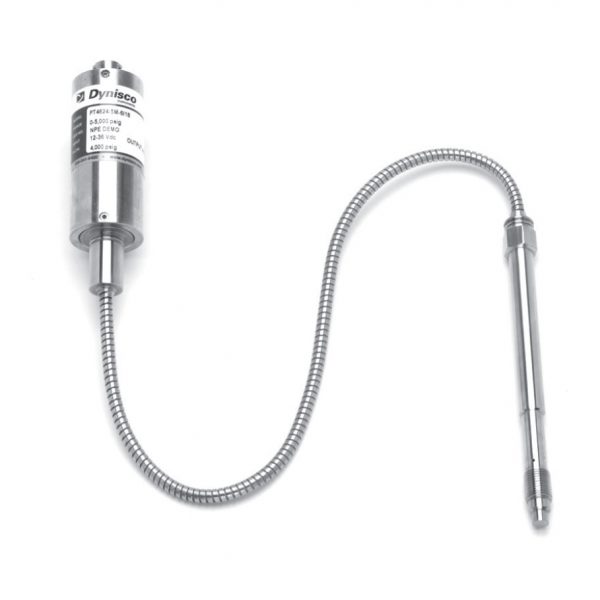

The Dynisco PT462E-XM-6/18 3.33 mV/V melt pressure transducer with 6-inch stem and 18-inches of flexible capillary is a +/- 0.5% sensor ideal for melt pressure applications requiring simple installation, repeatability and reliability. The PT462E-XM-6/18 transducer provides the industry standard 3.33 mV/V signal designed to work with most pressure indicators. The PT462E-XM-6/18 comes equipped with a six-pin bendix connector. Optional thermocouple or RTD configurations are available to provide melt temperature. The Dynisco PT462E-XM-6/18 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of other electrical connections if desired.
SKU#PT462E
Common Options
- Accuracy better than ±0.5%
- DyMax® coated stainless steel wetted parts
- Proven sensor design
- 0 – 500 to 0 -30,000 psi
- Internal 80% shunt calibration
- 5M=5,000 PSI; 10M=10,000 PSI
- 6/18 = 6″ Rigid Stem, 18″ Flexible Capillary
Please note, other options are available. If you don’t see what you’re looking for here, please contact us to learn about other options.
| Part Number | Description | Style | Max Diaphragm Temp | Zero Shift | Max Temp | Zero Shift | Mounting Torque | Standard Wetted Parts | Combined Errors |
|---|---|---|---|---|---|---|---|---|---|
| PT462E-5M-6/18 | 5,000 PSI 6" rigid stem with 18" flex capillary | 0462000133 | 750° F (400°C) | 25 psi/ 100°F (45 psi/100°C) | 250°F (121°C) | 0.05% - 0.10% full scale/°C | 500 inch/lbs max | Dymax coated15-5 PH SST | 0.5% FSO |
| PT462E-10M-6/18 | 10,000 PSI 6" rigid stem with 18" flex capillary | 0462000135 | 750° F (400°C) | 25 psi/ 100°F (45 psi/100°C) | 250°F (121°C) | 0.05% - 0.10% full scale/°C | 500 inch/lbs max | Dymax coated15-5 PH SST | 0.5% FSO |
